A301-150W(N)+USB

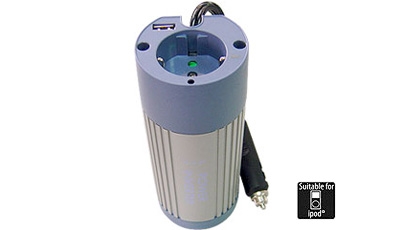

A301-150W(N)+USB DC AC Inverter
    Product Name : A301-150W(N)+USB
    Product Description

    ITEMS DC12V DC24V
    OUTPUT POWER

    100W CONTINUE
    150W ( 30 MIN )
    200W FOR SURGE OUTPUT
    INPUT VOLTAGE DC 10-15V DC 20-30V
    INPUT FULL LOAD CURRENT 15A 10A
    OUTPUT VOLTAGE AC 100V,110V,120V,220V,230V,240V
    OUTPUT VOLTAGE REGULATION +/- 5%
    OUTPUT WAVEFORM MODIFIED SINE WAVE
    OUTPUT FREQUENCY 50 OR 60 HZ
    USB OUTPUT POWER DC5V 500mA DC5V 300mA
    LOW VOLTAGE INPUT SHUTDOWN DC 9.5+/- 0.5V DC 19+/- 0.8V
    HIGH VOLTAGE INPUT SHUTDOWN DC 15+/- 0.5V DC 30+/- 0.8V
    STANDBY CURRENT 0.25A 0.2A
    EFFICIENCY 90%
    THERMAL PROTECT 60 +/- 0.5℃
    COOLING BY AIR CONVECTION
    PROTECTIONS
    • SOFT START
    • OUTPUT SHORT : SHUTDOWN
    • INPUT POLARITY REVERSE : BY FUSE
    • HIGH VOLTAGE INPUT :SHUTDOWN
    • LOW VOLTAGE INPUT : SHUTDOWN
    • OVERLOAD : SHUTDOWN
    • OVERTEMPERATURE : SHUTDOWN
    • BATTERY LOW : SHUTDOWN
    • TROUBLE DISPLAY : LED
    FUSE 15A 10A
    AC OUTLET ONE AC OUTLET
    SIZE(LxWxH) ∮ 66x150 mm
    WEIGHT 0.43 kgs
